Inicio /Productos/Horno de recocido por inducción/Induction Heating Machine XZG-100SCZ Single-Door Superaudio / Induction Hardening Machine 100kw Medium Frequency Induction Heat Treatment Equipment

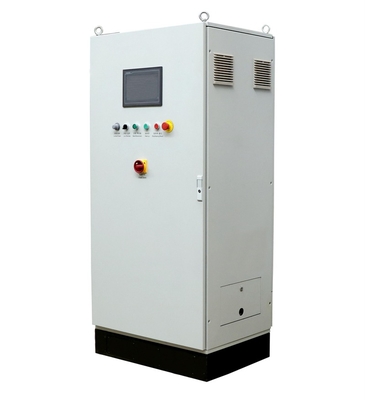

Induction Heating Machine XZG-100SCZ Single-Door Superaudio / Induction Hardening Machine 100kw Medium Frequency Induction Heat Treatment Equipment

1 Set
MOQ
$15,300.00(>=1 Sets)
Precio
Induction Heating Machine XZG-100SCZ Single-Door Superaudio / Induction Hardening Machine 100kw Medium Frequency Induction Heat Treatment Equipment
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Machine Type: Induction Heating Machine
Weight (KG): 100
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Bearing, Gearbox, Pressure vessel, Gear, Pump
Warranty: 1 Year
Key Selling Points: High-accuracy
Applicable Industries: Manufacturing Plant
Showroom Location: Sri Lanka, Kyrgyzstan, Malaysia, None
Application: induction heating machine
Type: Digital circuit
Power: 100kw
Frequency: 1-50Khz
Certificación: CE ISO SGS
After-sales Service Provided: Free spare parts
After Warranty Service: Video technical support
Información básica
Certificación: CE ISO SGS
Pago y Envío Términos
Packaging Details: plywood box for high frequency induction brazing machine
Supply Ability: 5 Set/Sets per Month
Descripción de producto
Products Description
Model
XZG-100SCN
Input voltage
380V ±10%
incoming current
≤170A
frequency
50-60Hz
Inverter frequency
1-50kHz
output power
≤100kw
control precision
1‰
Power output range
5%-100%
Inverter power factor
≥0.96
control mode
Constant current, constant power, constant temperature
Cooling water pressure
0.1-0.3MPa
environment  temperature
5℃-45℃

Main characteristic

(1) Wide frequency tracking range:1kHz-50kHz
(2) The load adaptation range is wide : series resonance is not afraid of no load , parallel resonance is not afraid of heavy load
(3) Intelligent protection function: power regulation range 1%-100%, superior to most domestic manufacturers.
(4) Intelligent protection function: with overvoltage, overcurrent, overfrequency, overheating, leakage and other restrictive protection functions, but also with water pressure, lack of phase, short circuit and other conventional hardware protection functions, all faults can be remembered .
(5)adopt Rital cabinet , equipped with IP54 protection grade and equipped with industrial temperature and humidity adjustment air conditioning, signal transmission by optical fiber to effectively avoid the temperature, humidity, electromagnetic interference caused by power fluctuations and faults.
(6)100% success rate of startup: 100% success rate of starting equipment under any working condition.
(7)High startup speed: equipment startup to maximum power stable output time less than 0.15 seconds, much faster than traditional equipment startup time of 1-2 seconds
(8)Good repetition consistency: all digital power control, Power resolution can be achieved 0.25‰, through the touch screen directly input set power, can avoid the traditional equipment with analog potentiometer to adjust the power caused by power fluctuations
(9)Multifunctional extended interface: easy to connect with machine tool production line and digital communication interface, can realize centralized control of industrial field.
Product Application
1.Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools.
2.·Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve,rock arm shaft,semi drive shaft, small shaft and fork. 3.Heat treatment for various electric tools, such as gear and axes.
4.Heat treatment for machine tools,such as lathe deck and guide rail. 5. Hardening for various hardware metal parts and machined parts, such as shaft,gear chain wheel, cam,chuck and clamp.
6. Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold. 7. Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
·8. Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.
Why choose us
Our company

Company profile

Zhengzhou kechuang Electronics Co.,Ltd was established in 31th,August 2001.Kechuang has been developed hundreds of products which has been widely spread and enjoyed by both national and international market since 2001. In 2016,in order to meet the high-end users' demand both in domestic and overseas.We produced much higher performance,higher percision and higher cost-effective intelligent IGBT power supply. Kechuang always has always regard "more energy-saving","more reliable" as the product development direction.Completing the products automatic,intelligent and robotic functions , which leads in the first of national induction heating technology.All of our products and technologies can provide.
Exhibition
Certifications
Packing & Delivery
delicately packed
Hot forging machine welding equipment annealing furnace induction heater packed in wooden.We can also
ustomize the packaging according to your requirements
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
