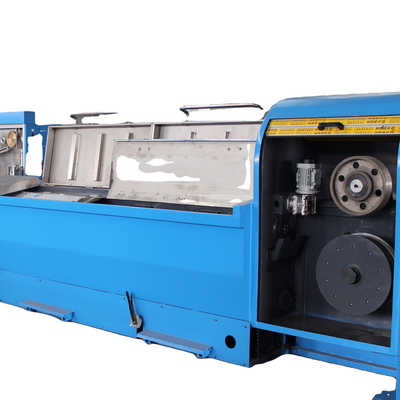

Cable manufacturing industry factory direct price 8mm electric wire and copper wire iron bar direct purlin machine with inline annealing 14 dies cable drawing machine

1.0 Sets
MOQ
Cable manufacturing industry factory direct price 8mm electric wire and copper wire iron bar direct purlin machine with inline annealing 14 dies cable drawing machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New, New
Inlet Diameter: 8mm
Outlet Diameter: 0.8-5.5mm
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Voltage: 380/415/440/220
Power: 7.5~160KW
Dimension(L*W*H): 7000*1200*1500
Weight: 24T
Warranty: 2 years
Key Selling Points: High Productivity
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining
Showroom Location: None
After-sales Service Provided: Engineers available to service machinery overseas, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Total Power(KW): 750
Supplier: FAR EAST(CHINA) GROUP LTD
Color: Blue
Spare parts: cheap but high quality
After-sales service: reliable and satisfactory
Application: Electric wire and cable making industry
Certificación: CE,ISO9001, ISO9001
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Información básica
Certificación: CE,ISO9001, ISO9001
Pago y Envío Términos
Packaging Details: Standard export packing or as customers' requirement
Supply Ability: 100 Set/Sets per Year
Descripción de producto
high speed Factory Direct good price 8mm copper wire rod breakdown machine with online annealing 14 dies cable drawing machine
Product Description
Usage
The machine is used to draw copper rod from Ø 8 mm to Ø 1.2~4.0 mm.
Specification
Main Capability Features
1) The drawing blocks are arranged in a horizontal single-bank tilt, and the distance between the cantilevers of all die holders are short, and in equal length, and have a strong stiffness.

2) The surface of drawing blocks is coated with tungsten carbide (powder), which is strong in hardness and abrasion resistance, and has a long life span.

3) The main drawing machine and fix capstan are driven separately, and all the dies can be changed conveniently and easily.

4) Horizontal DC annealer, with stable stretching rate of annealing and easy operation.

5) Continuous dual take up, automatic reel-change, the conductor elongation is not changed when changing the reel. The success rate of automatic reel-change is more than 99%.

6) Driven by DC motor, the imported PLC and touch Screen( Siemens of Preface) are convenient for operator to set and display the parameter on the touch screen.
Main Parameters of Sliding Heavy-Duty Copper Wire Drawing Machine With Annealer
Item
F-LHD450/9
F-LHD450/11
F-LHD450/13
Inlet Wire Dia.(mm)
Ø 8
Ø8
Ø 8
Outlet Wire Dia.(mm)
Ø 2.0~4.0
Ø 1.5~4.0
Ø 1.2~4.0
Max Die No.
9
11
13
Drawing Capstan Dia.(mm)
450
Max. Line Speed(mm)
18
22
25
Main Motor Power(KW)
250
250
250
Total Power(KW)
725
750
750
Annealer Power
70V×5000A
Drawing Capstan
Coated with tungsten carbide
Dual Takeup Standard(mm)
PND500/630
Traversing Type
Motor type
Lubrication Type
Immersion and spraying
Main Parameters of Sliding Heavy-Duty Aluminum Wire Drawing Machine
Item
F-LHD450/9
F-LHD450/11
F-LHD450/13
Inlet Wire Dia.(mm)
Ø 9/12.5
Ø9/12.5
Ø9/12.5
Outlet Wire Dia.(mm)
Ø 3.0~5.0
Ø 2.3~5.0
Ø 1.8~5.0
Max Die No.
9
11
13
Drawing capstan Dia.(mm)
450
Max. Line Speed(mm)
18
20
25
Main Motor Power(KW)
250
250
250
Total Power(KW)
385
385
385
Drawing Capstan
Coated with tungsten carbide
Dual Takeup Standard(mm)
PND500/630
Traversing Type
Motor type
Lubrication Type
Immersion and spraying
Packing & Delivery
Standard export packing or as customers' requirement
Company Profile
Why you should choose us 1.Our machines have the first-class quality in China. 2.The delivery time is generally about 30~100 days. 3.We have independent right to do foreign trade. 4.We always trade with foreign countries on the basis of credit,equality and mutual benefit. Our company has two main products: wire drawing machine, wire insualtion production line, wire stranding machine and coppe rod related products. We are a large scale group with new technology, up-to-date skill, latest device and combining research, production and sale. We are headquartered in Yangpu Area, Shanghai. Now, our company has more than 30 senior engineers and lots of experienced technical workers. We have three big manufacturing & processing centers, so that the work-types can be complete. Our company got ISO9001 certification and CE certification. Meanwhile, we established the import and export department in 2008, to develop the international markets more successfully. Nowadays, our company keeps good cooperative relationship with many domestic and overseas industry associations. Our market covers American and European countries, the Middle East, Africa, Russia, Ukraine, Southeast Asia and so on. We have built some large projects abroad, even Turnkey projects.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2012,sell to Domestic Market(73.00%),South Asia(6.00%),Mid East(5.00%),Southeast Asia(5.00%),Africa(4.00%),Eastern Europe(3.00%),Eastern Asia(3.00%),South America(1.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wire and Cable Machinery,Rod Casting Machine,Wire Drawing Machine,Industrial Furnace,Plastic Extruding Machinery

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Russian
